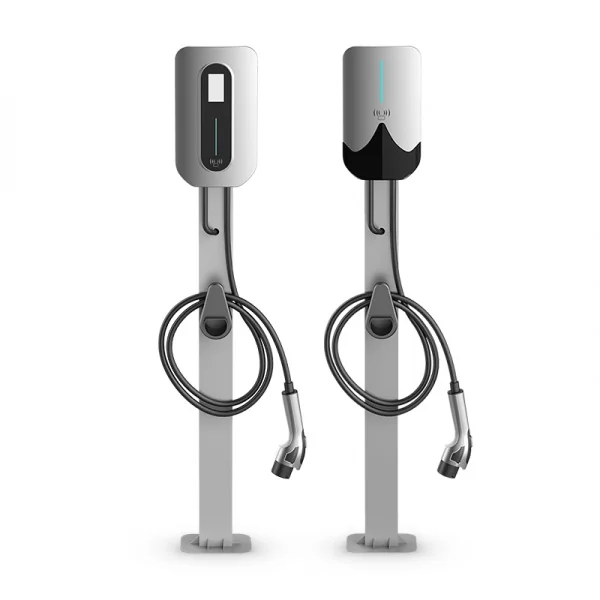

7KW AC Charging Station WiFi App Version｜230V 32Amp｜Type 2 or Type 1

7KW AC Charging Station WiFi App Version｜230V 32Amp｜Type 2 or Type 1

Original price was: $420.00.Current price is: $369.00.

Features

Simple Design

It has detection and protection functions such as overvoltage, undervoltage, overcurrent, output reverse connection, and leakage.

Flexible Payment

Supports multiple payment methods, including plug-and-charge, swiping cards, scanning QR codes, etc.

Powerful Functionality

Supports power-off resumption, and is scalable for orderly charging, scheduled charging, Bluetooth connection, Wi-Fi connection. It also supports online management, remote upgrade, and is compatible with 3.5KW/7KW/11KW/22KW output.

Secure Payment

You may also like

Product details

Product line Specification item Value
Single-phase Series Product model GEVAO7220P
Rated power 3.5 kW / 7 kW
Input voltage 230 V ±10 %, single-phase, 50 Hz
Output voltage 230 V ±10 %, single-phase
Output current 0 – 32 A max
Protection level IP55
Lightning protection level Level 3
Operating temperature −20 °C to +50 °C
Relative humidity 5 % – 95 %
Material PC
Protection functions Over-current, over-voltage, under-voltage, integrated surge protection, PME (UK)
Altitude ≤ 2000 m
Atmospheric pressure 70 – 106 kPa
Insulation resistance > 10 MΩ
Internal RCD AC 30 mA, DC 6 mA
Connector type IEC 62196 Type 2 or Type 1 plug, 5 m cable
Mounting Wall or floor using pedestal
Safety & compliance IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/-7
Communication protocols OCPP 1.6J (upgradeable to 2.0.1)
Communication methods Bluetooth, Wi-Fi, Ethernet, 4G (optional), CAN, RS485 for energy meter
Warranty 36 months (extension available)
Certification CE (SGS)
Three-phase Series Product model GEVA11380 / GEVA22380P
Rated power 11 kW / 22 kW
Input voltage 400 V ±15 %, three-phase, 50 Hz
Output voltage 400 V ±15 %, three-phase, 50 Hz
Output current 0 – 32 A max
Protection level IP55
Lightning protection level Level 3
Operating temperature −20 °C to +50 °C
Relative humidity 5 % – 95 %
Material PC
Protection functions Over-current, over-voltage, under-voltage, integrated surge protection, PME (UK)
Altitude ≤ 2000 m
Atmospheric pressure 70 – 106 kPa
Insulation resistance > 10 MΩ
Internal RCD AC 30 mA, DC 6 mA
Connector type IEC 62196 Type 2 or Type 1 plug, 5 m cable
Mounting Wall or floor using pedestal
Safety & compliance IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/-7
Communication protocols OCPP 1.6J (upgradeable to 2.0.1)
Communication methods Bluetooth, Wi-Fi, Ethernet, 4G (optional), CAN, RS485 for energy meter
Warranty 36 months (extension available)
Certification CE (SGS)

Description

Applicable Scenarios

It is mainly designed for charging household pure electric passenger cars, plug-in hybrid cars, small freight trucks and other small cars, which is installed in ground or underground parking lots such as residential communities, commercial areas, office buildings, etc.

Features

Simple Design

It has detection and protection functions such as overvoltage, undervoltage, overcurrent, output reverse connection, and leakage.

Flexible Payment

Supports multiple payment methods, including plug-and-charge, swiping cards, scanning QR codes, etc.

Powerful Functionality

Supports power-off resumption, and is scalable for orderly charging, scheduled charging, Bluetooth connection, Wi-Fi connection. It also supports online management, remote upgrade, and is compatible with 3.5KW/7KW/11KW/22KW output.
